Oil Coolers

OFF ROAD OIL COOLERS

CBR Performance Products, Inc. specializes in manufacturing custom, high performance, all aluminum oil coolers. These coolers are constructed of aircraft grade aluminum and feature a unique internal turbulized fin design that improves the flow of oil more efficiently and benefits from its low pressure drop design configuration and maximum heat transfer. Each cooler has a custom integrated shroud and SPAL fan for maximum air flow and cooling performance. These coolers are compatible with all engine oil and transmission fluid applications. All coolers are rated up to 150psi and go through a vigorous testing cycle before they are released.
Part #Overall SizeInlet/ OutletFansPass StyleApplication

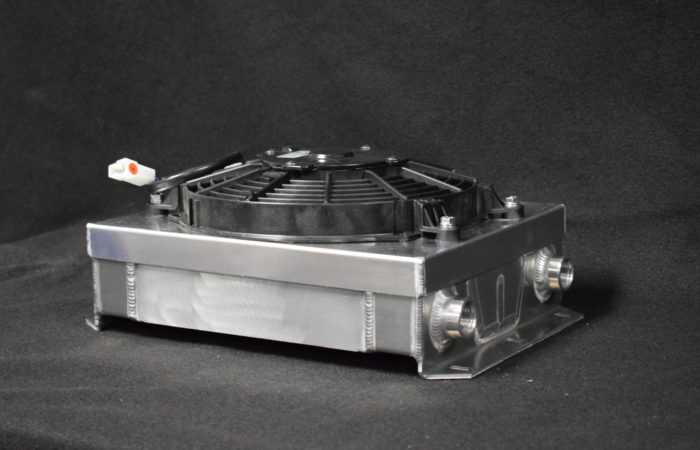

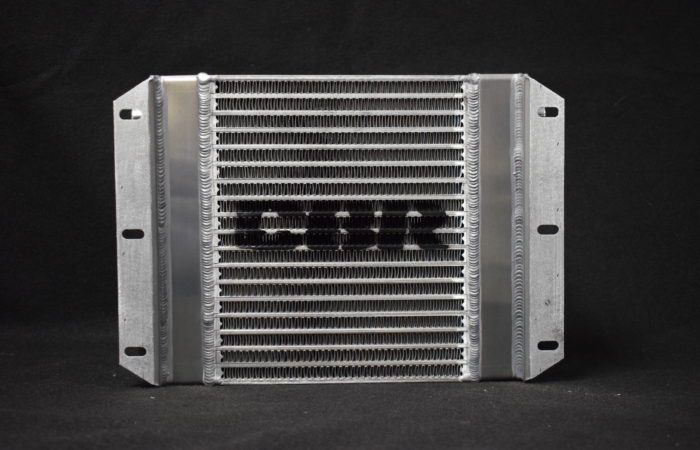

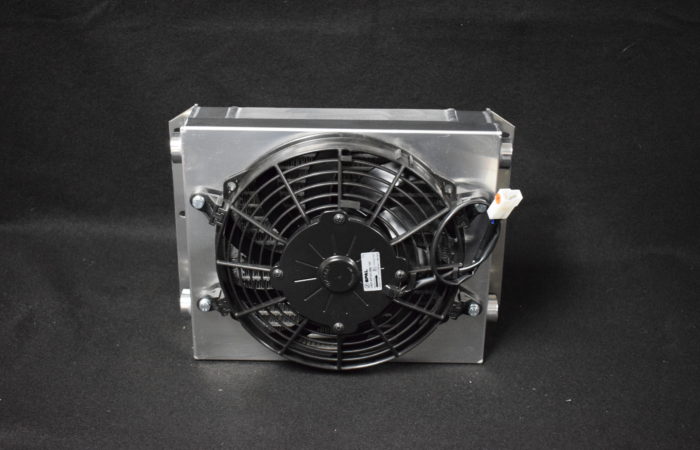

CBR282713.75″ X 10″ X 5.5″-10 ORB9” SPALSingle PassSmall Off Road Cooler
CBR282913.75" X 10" X 5.5"-10 ORB9" SPALDual PassSmall Off Road Cooler

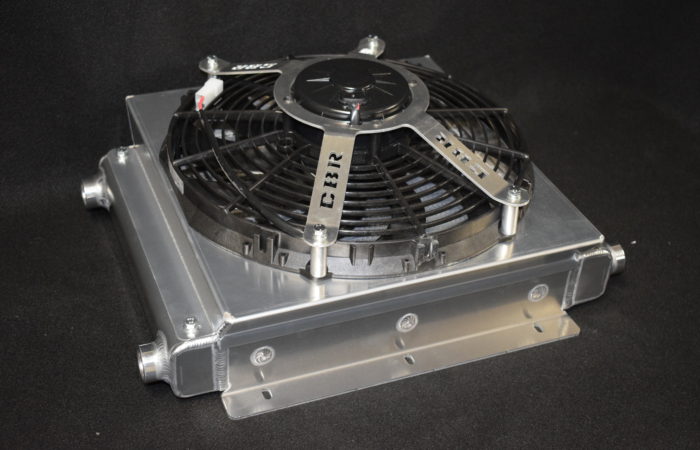

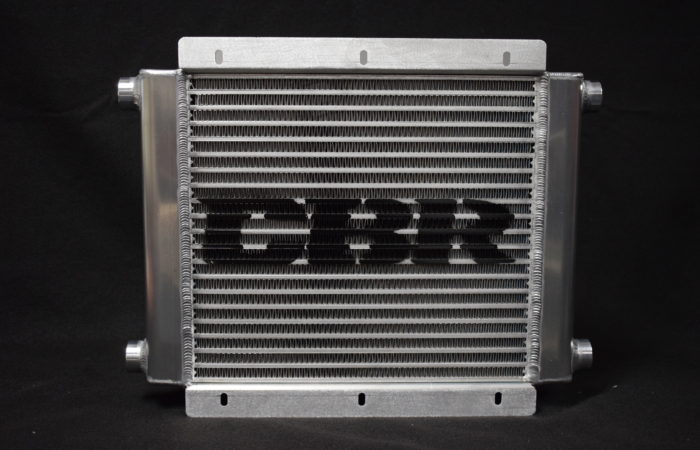

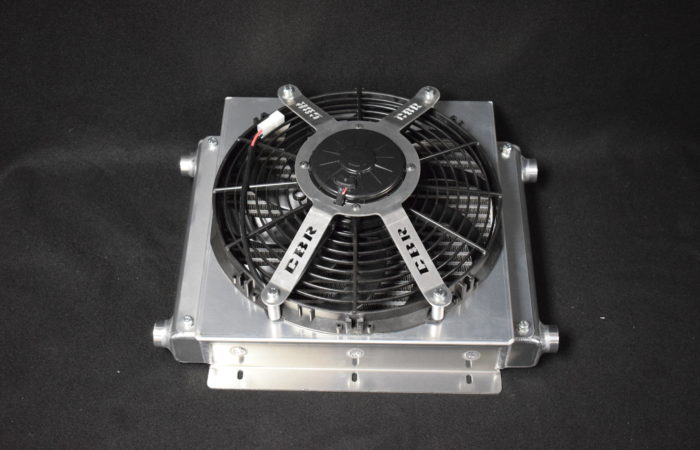

CBR983516″ X 14″ X 8.5″-10 ORB12” SPALSingle PassLarge Off Road Cooler

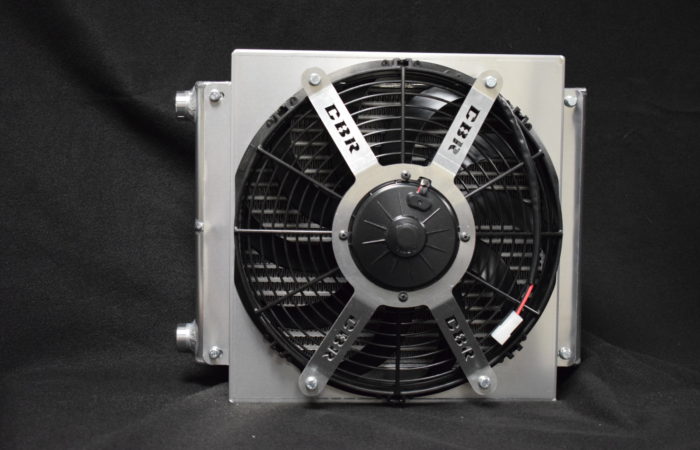

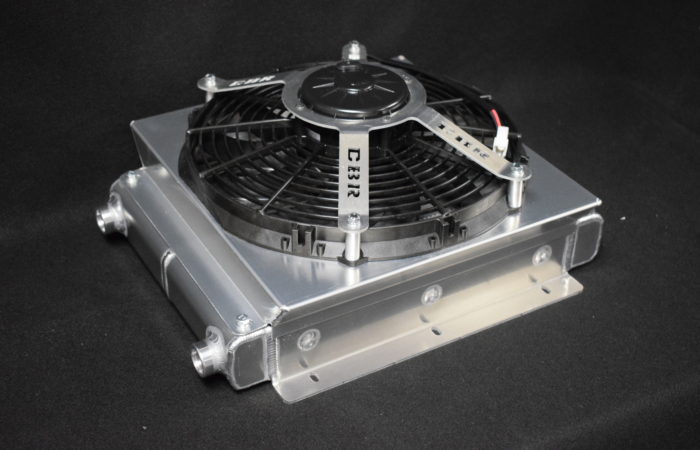

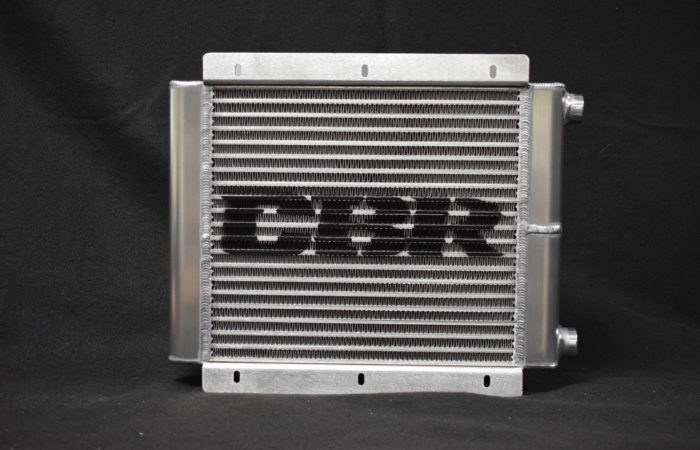

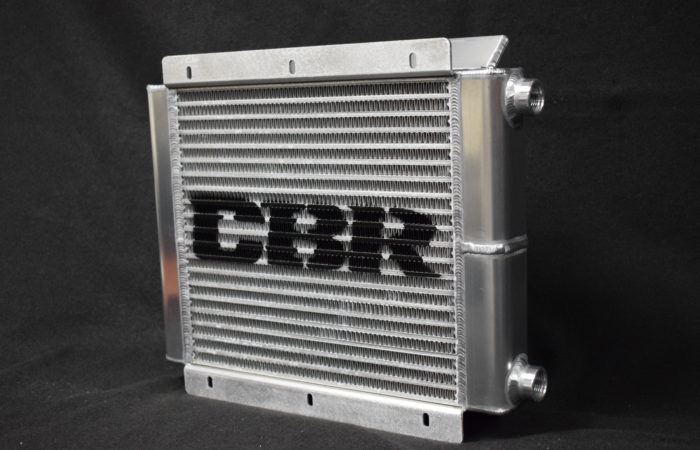

CBR983616″ X 14″ X 8.5″-10 ORB12” SPALDual PassLarge Off Road Cooler
CBR983921" X 6.75" X 5.63"-10 ORB(3) 5.2 SPALSingle PassLarge Off Road Cooler
CBR983821" X 11" X 6.5"-10 ORB(2) 9" SPALDual PassLarge Off Road Cooler
CBR983722" X 15.75" X 6.90"-10 ORB14" SPALDual PassLarge Off Road Cooler

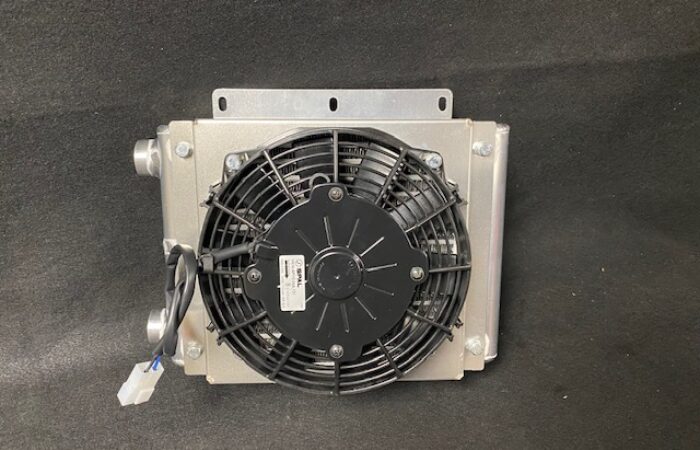

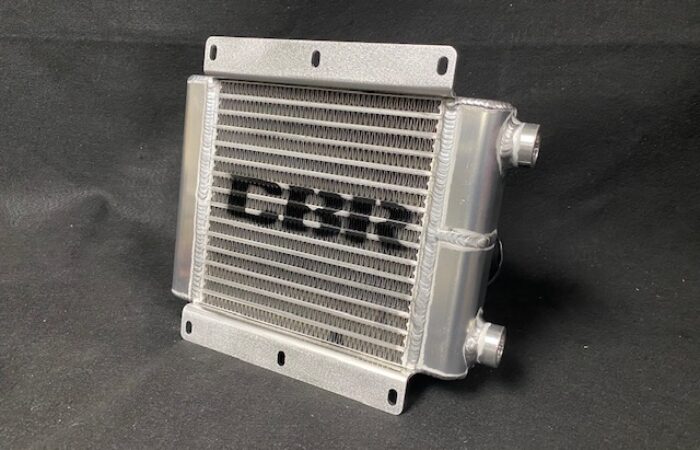

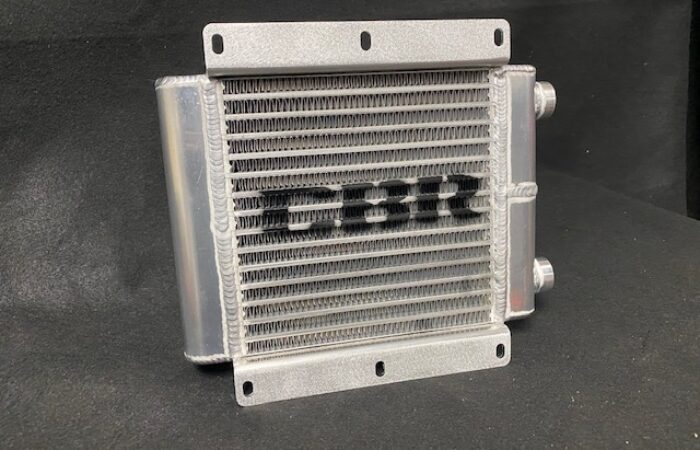

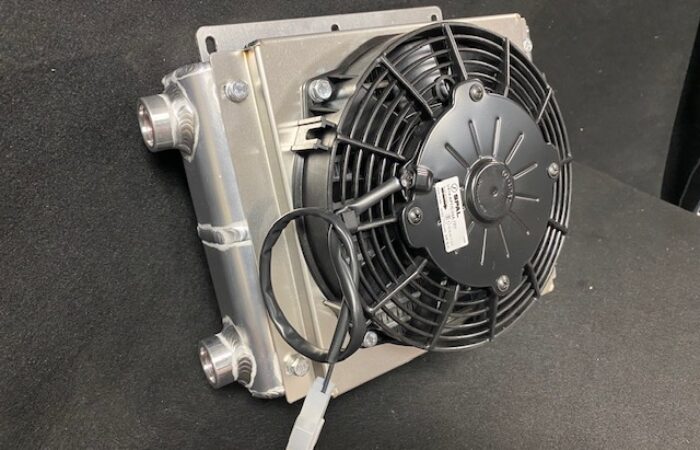

CBR984111.26" X 10.19" X 5.35"-10 ORB7.5" SPALDual PassSmall Off Road Cooler

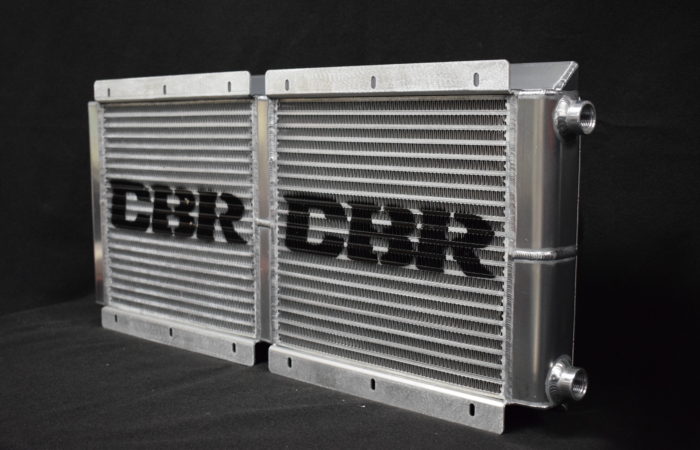

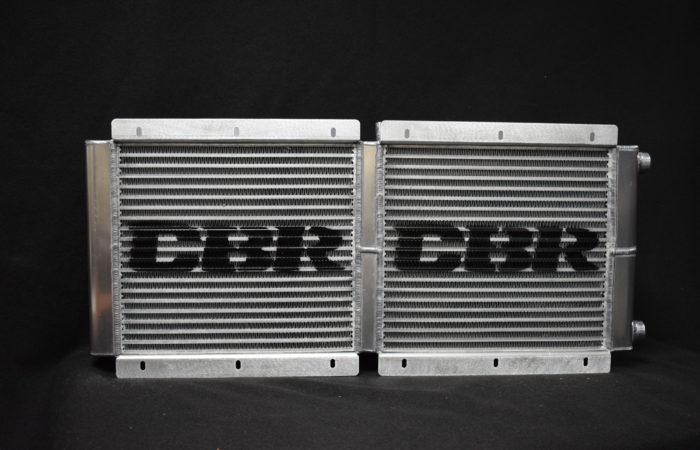

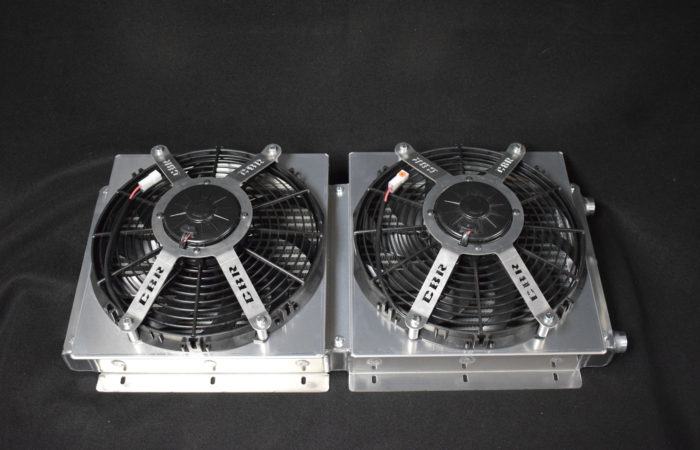

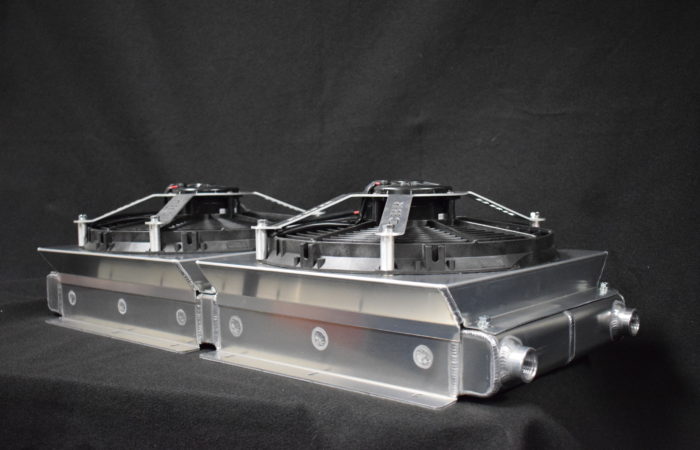

CBR005932″ X 14″ X 8.5″-10 ORB(2) 12” SPALDual PassX-Large Off Road Cooler

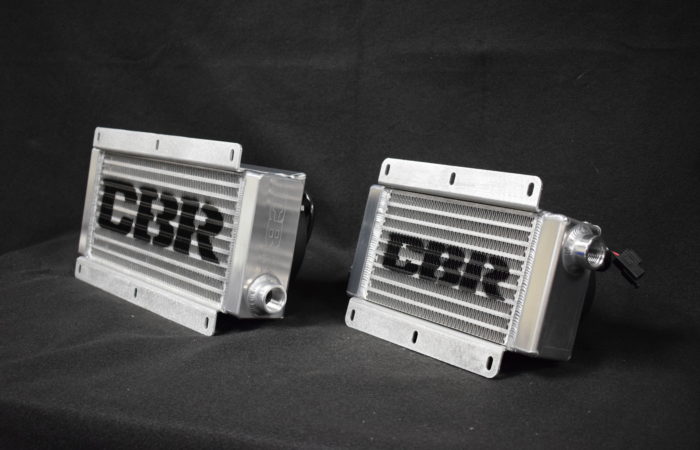

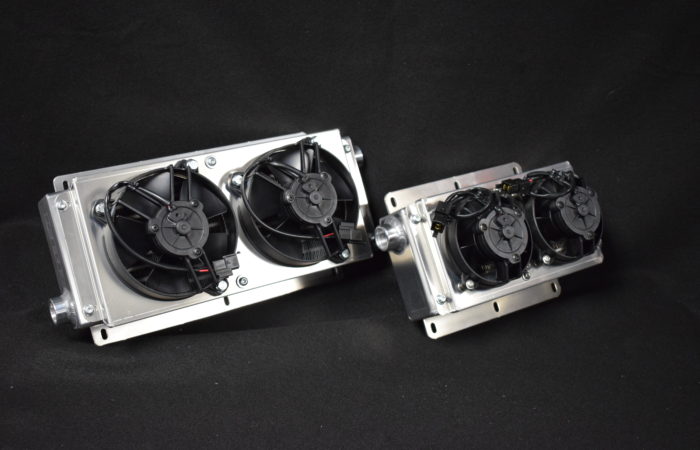

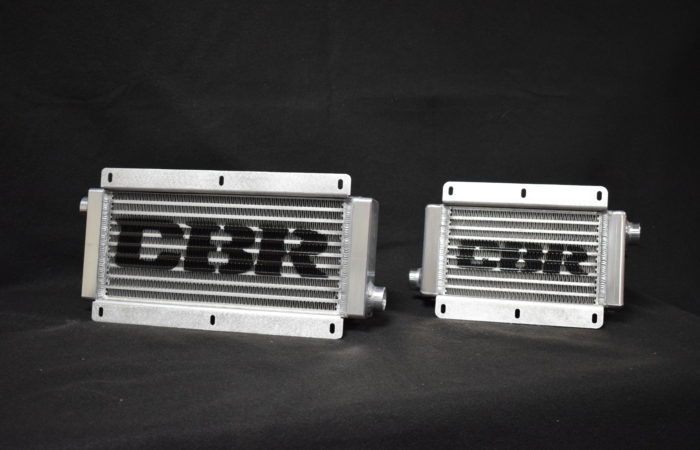

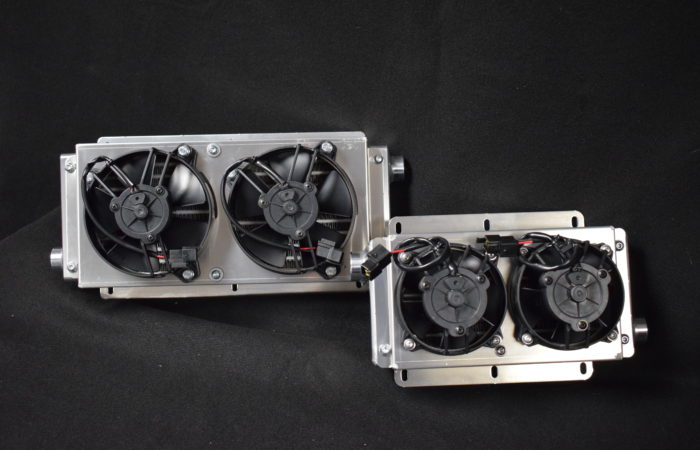

MINI OIL COOLERS


CBR mini coolers are perfect for making use of tight confined spaces on your vehicle. These coolers feature the same design as the larger relative coolers. They are compatible with all oil and transmission fluid systems. The coolers can be used for universal cooling applications such as differential, power steering and small engine cooling applications.
Part #Overall SizeInlet/ OutletFansPass StyleApplication
CBR004110.5" X 7" X 5.75"-10 ORB5.2" SPALSingle PassSmall Mini Off Road Cooler
CBR0041B10.5" X 7" X 5.75"-10 ORB5.2" SPALSingle PassSmall Mini Off Road Cooler With Billet End Tanks
CBR0041HF10.5" X 7" X 5.75"-10 ORB5.2" SPALSingle PassSmall Mini Off Road Cooler High Flow With Billet End Tanks

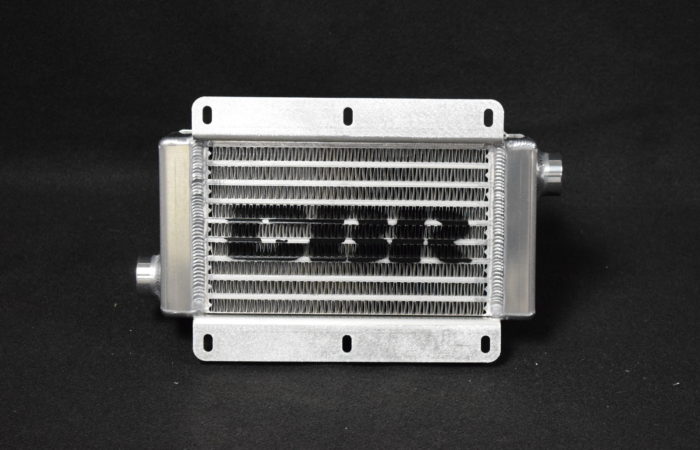

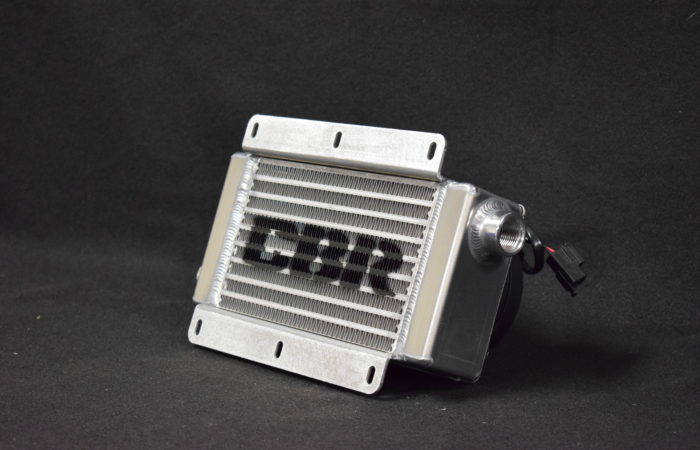

CBR005110.5″ X 7″ X 5.75″-10 ORB(2) 4” SPALSingle PassSmall Mini Off Road Cooler
CBR0051B10.5″ X 7″ X 5.75″-10 ORB(2) 4” SPALSingle PassSmall Mini Off Road Cooler With Billet End Tanks
CBR0051HF10.5″ X 7″ X 5.75″-10 ORB(2) 4” SPALSingle PassSmall Mini Off Road Cooler High Flow With Billet End Tanks (Recommended for high pressure power steering Applications)

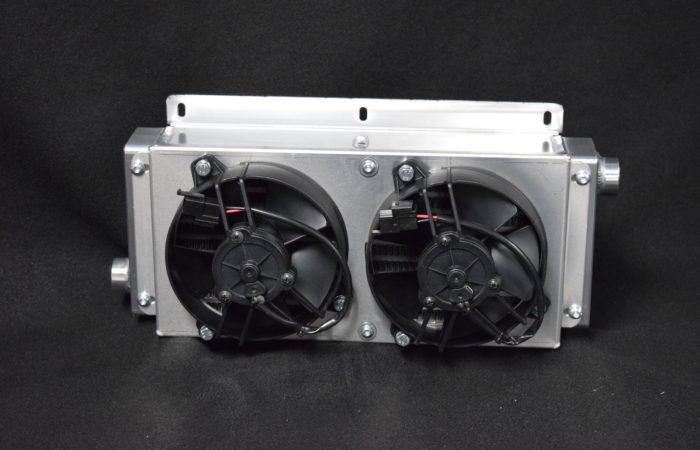

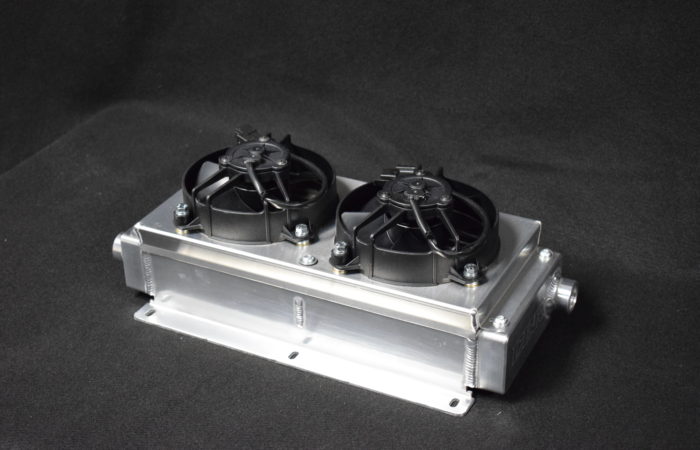

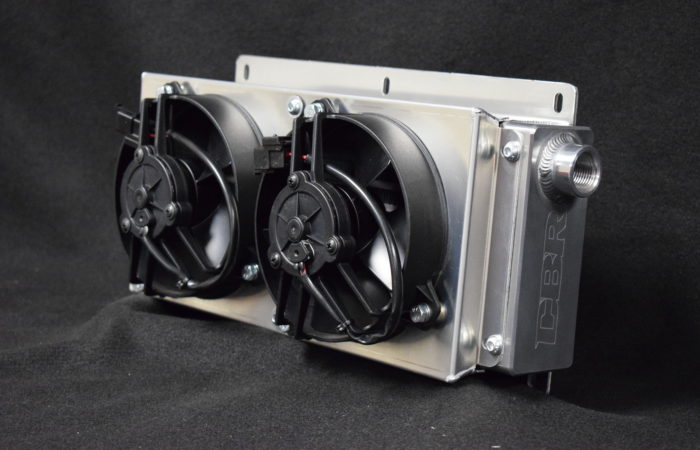

CBR005215″ X 8″ X 6″-10 ORB(2) 5.2” SPALSingle PassLarge Mini Off Road Cooler
CBR0052B15″ X 8″ X 6″-10 ORB(2) 5.2” SPALSingle PassLarge Mini Off Road Cooler With Billet End Tanks

INTANK OIL COOLERS

CBR’s “INTANK” Oil Coolers were designed for high pressure applications for maximum heat transfer. These coolers can be integrated into almost any radiator application and serve as a heat exchanger. The turbulized fin design allows maximum oil flow for those high end race applications with minimal pressure drop. These coolers have been tested and rated for up to 300psi.

Part #Core SizePlatesInlet/ Outlet
CBR220045MM7 Plate7/8-14 UNF (-10 ORB)
CBR220145MM9 Plate7/8-14 UNF (-10 ORB)
CBR220245MM12 Plate7/8-14 UNF (-10 ORB)

POWER STEERING COOLERS

Part #Inlet/ OutletFanOverall sizeReservoirApplication

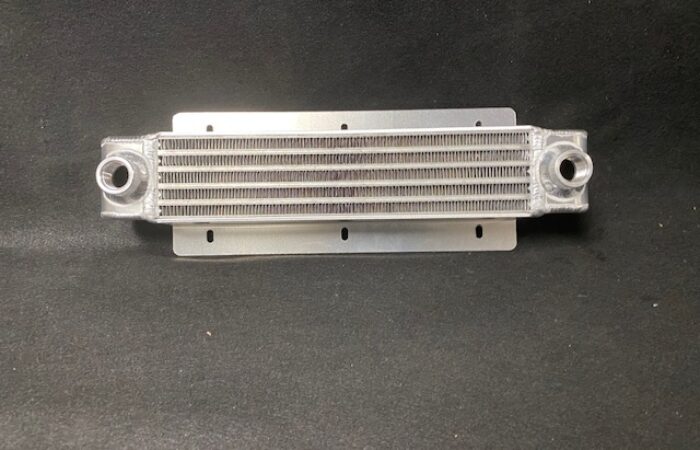

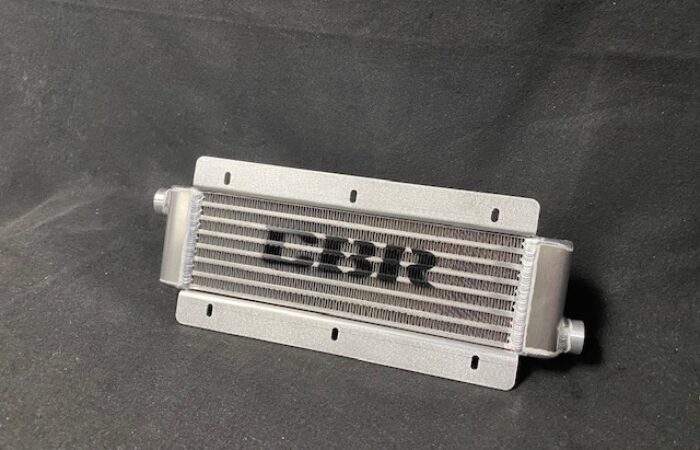

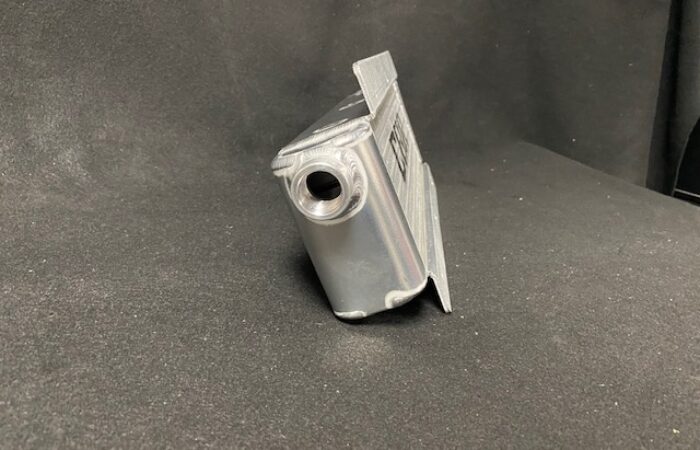

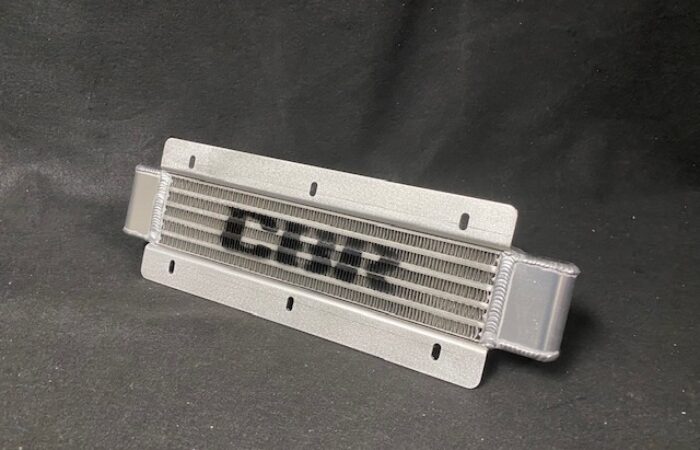

CBR0222-10 ORBNo Fan16" X 4.90" X 3.5"NonePower Steering Cooler
CBR9003-12 ORB7.5" SPAL13.21" X 10.67" X 5.11"Right Hand SidePower Steering /Reservoir Cooler Combo

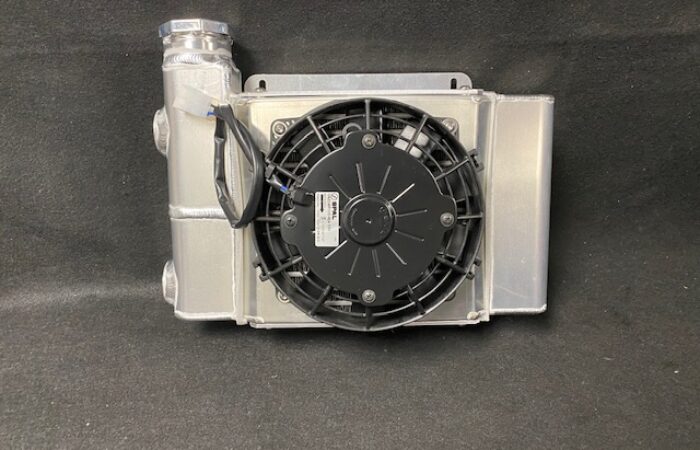

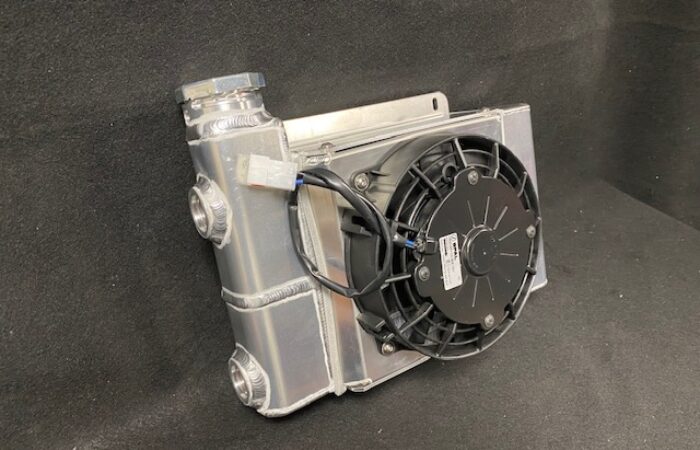

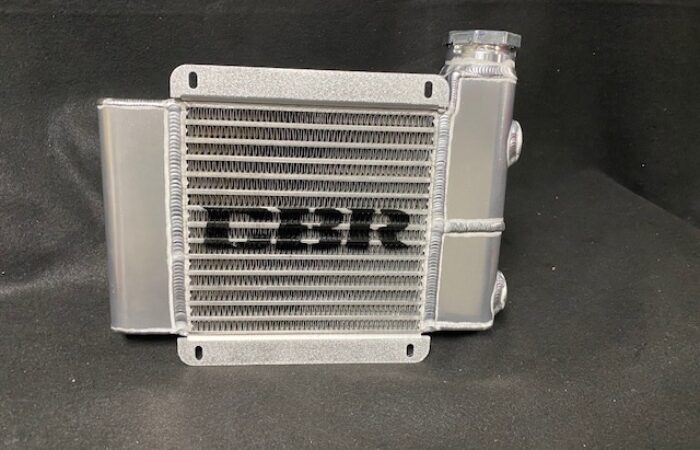

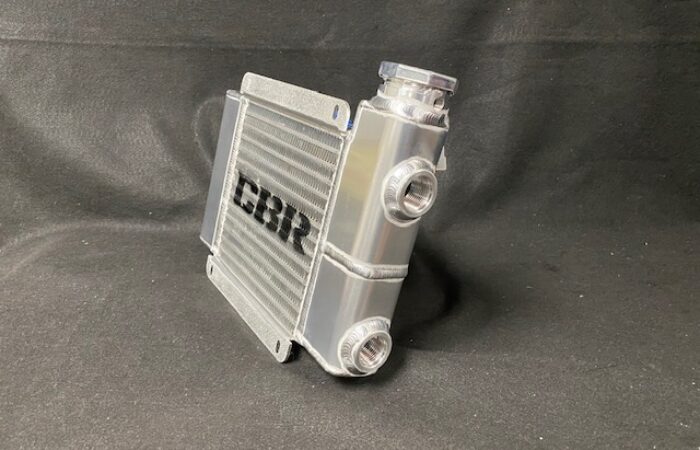

CBR9004-12 ORB7.5" SPAL13.21" X 10.67" X 5.11Left Hand SidePower Steering/Reservoir Cooler Combo

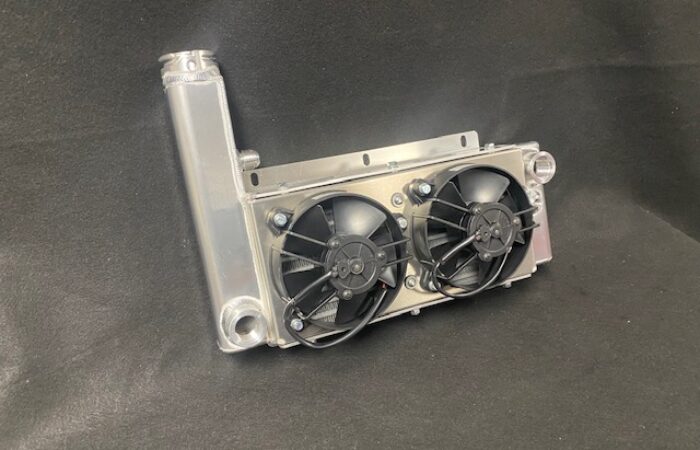

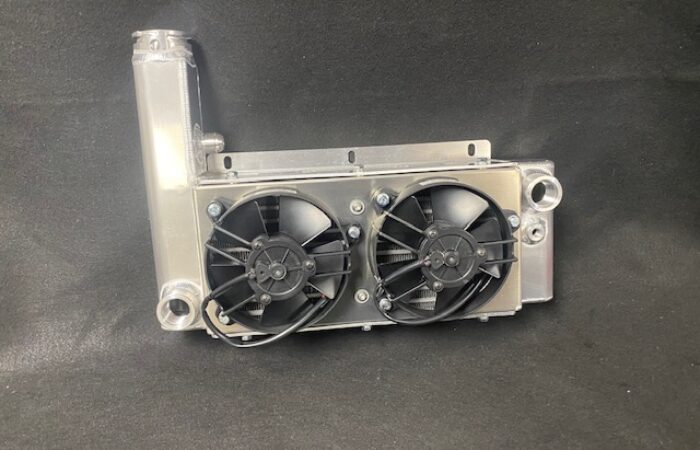

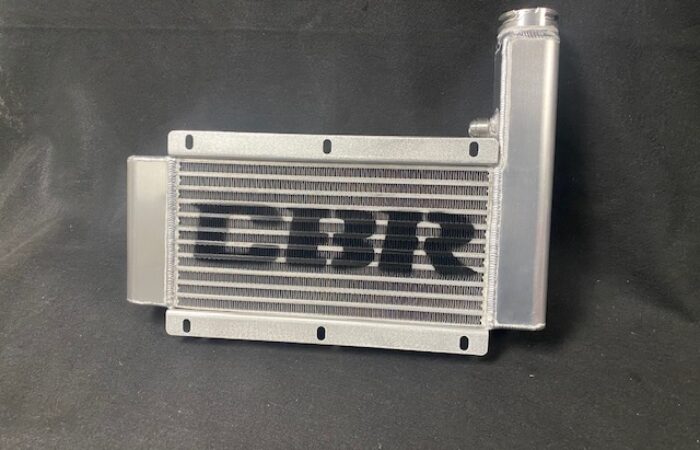

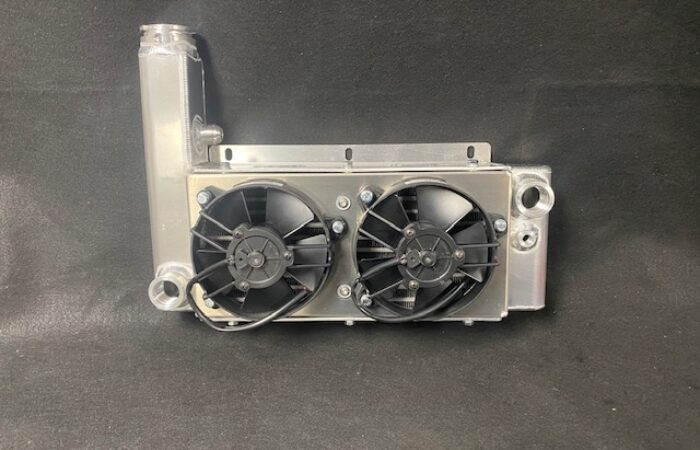

CBR9005-12 ORB(2) 5.2 SPAL17" X 12" X 2.75"Left Hand SidePower Steering/ Reservoir Cooler Combo

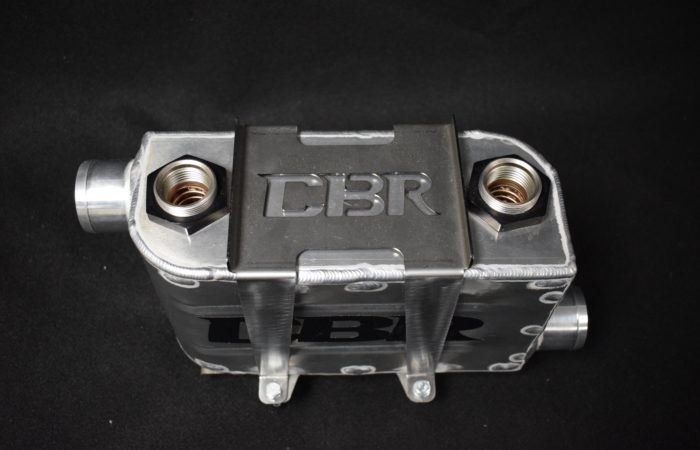

IN-LINE OIL COOLERS

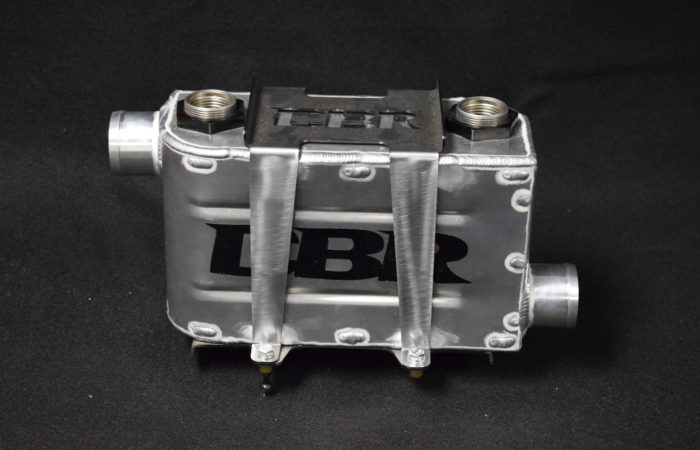

CBR’s “IN-LINE” oil coolers have been designed with the serious RACER in mind. These coolers consist of a complex internal core to provide high heat transfer in a low pressure drop configuration. The multi pass baffle system inside the tank allows water to pass through the cooler multiple times for maximum heat transfer. These coolers are designed to run in-line with your water lines, allowing water to pass through the oil coolers.
Part #Overall SizeH2O Inlet/ OutletOIL Inlet/ OutletDescription

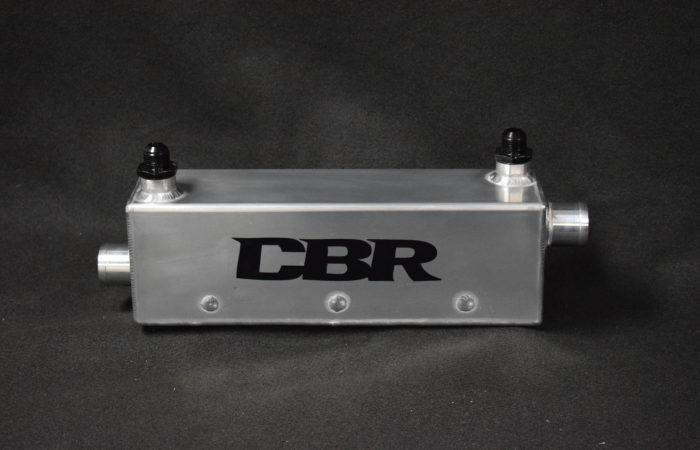

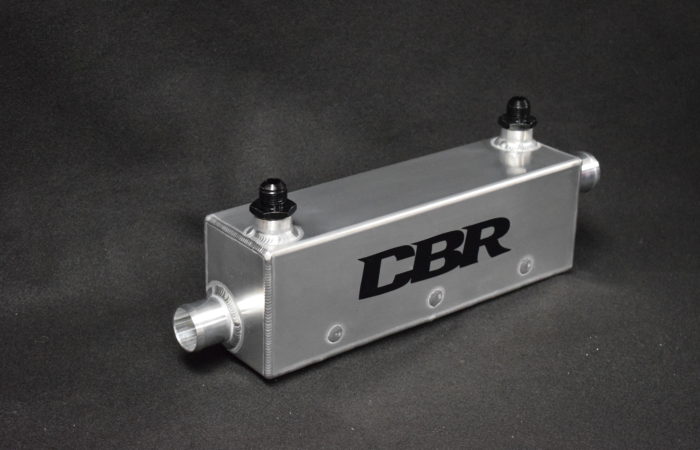

CBR005614″ X 4.5″ X 3.5″1.5” -10 ORBInline Heat Exchanger in a Box 12 Plate Aluminum
CBR0055Inline Heat Exchanger in a Box Mounting Bracket to suite CBR0056

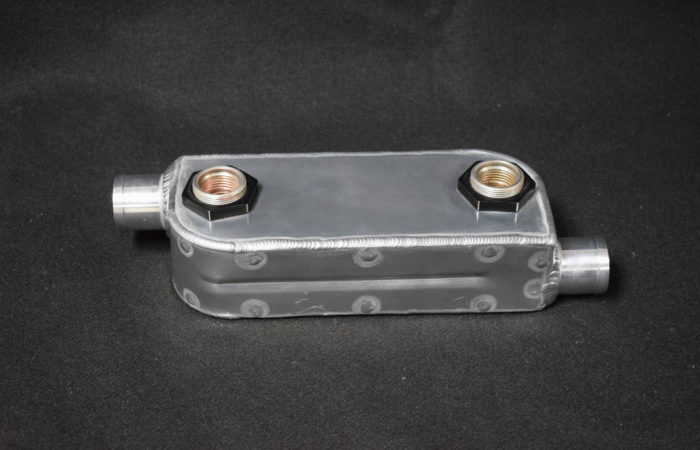

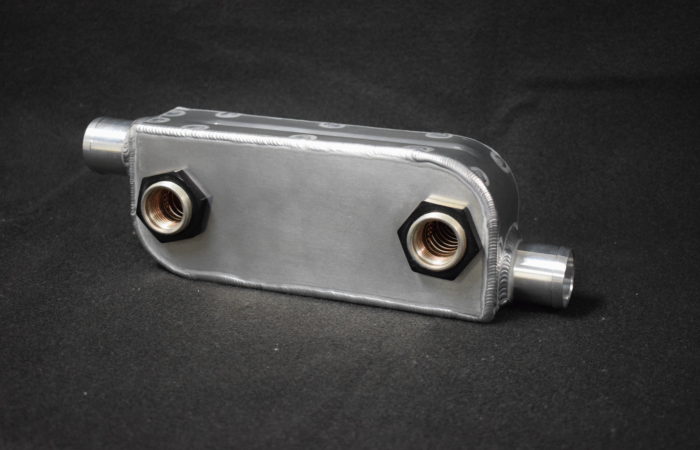

CBR00649.75″ X 4″ X 2.5″1.5”-12 ORBInline Heat Exchanger 9 Plate Stainless Steel
CBR0061 10″ X 5.75″ X 4″1.5” -12 ORBInline Heat Exchanger 22 Plate Stainless Steel
CBR0060Inline Heat Exchanger 22 Plate Mounting Bracket to Suit CBR0061

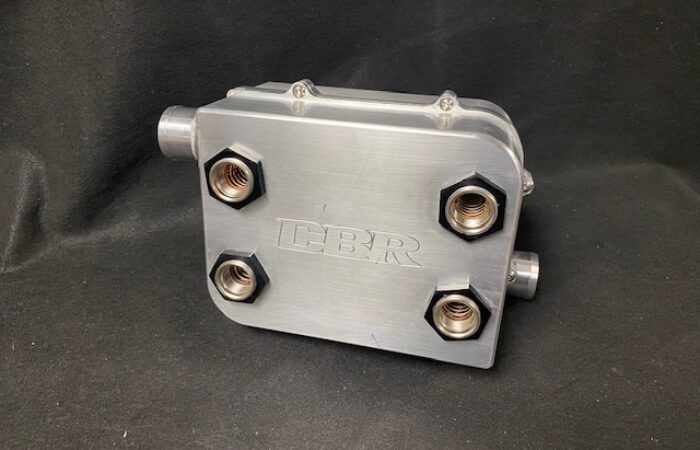

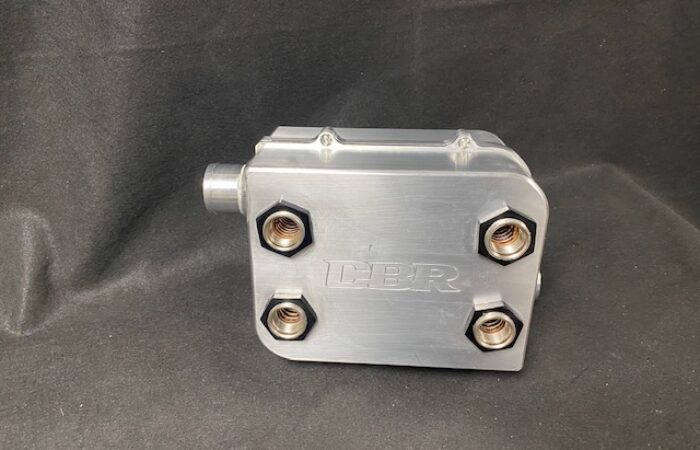

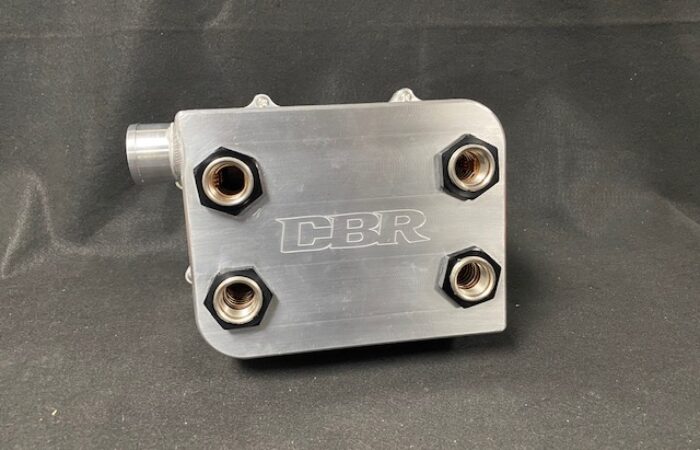

CBR006610″ X 11.5″ X 4″1.5”-12 ORBDual Billet Inline Heat Exchanger 22 Plate Stainless Steel
CBR006810" X 11.5" X 4"1.5"-12 ORBBillet Inline Heat Exchanger 22 Plate Stainless Steel

UNIVERSAL OIL COOLERS

CBR’s “UNIVERSAL” oil coolers feature the same cooling performance as our plate and fin coolers but handle larger applications. These coolers have a 50mm core, 10mm fin pitch and come in two sizes. Applications vary from Oil Cooler, Transmission Fluid Coolers, Power Steering Coolers and Differential Coolers.

Part #DimensionsOil Cooler inlet/Outlet

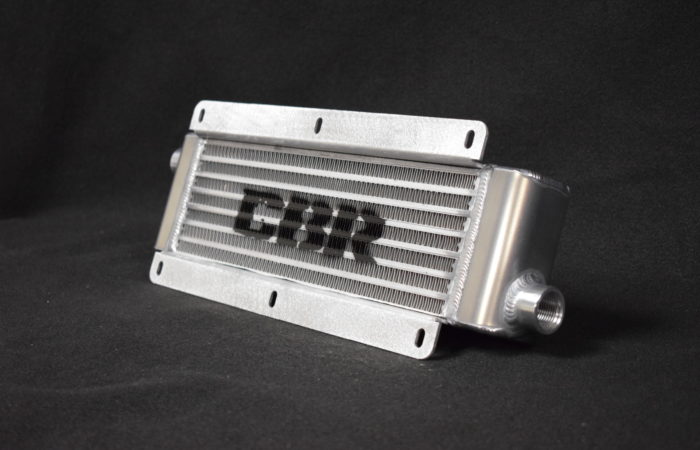

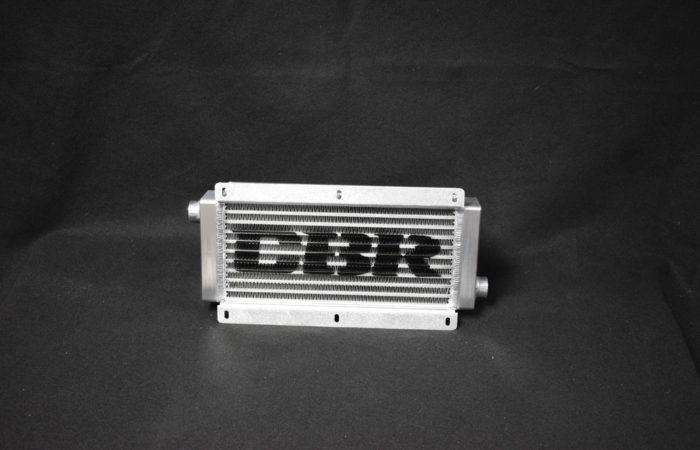

CBR005414″ X 4.5″ X 3.5″7/8-14 UNF (-10 ORB)
CBR005315″ X 7″ X 3″7/8-14 UNF (-10 ORB)
