UTV Race-Class Radiator Kit

UTV Race Class


CBR has always been aware of the racers needs, resulting in the development of our Cage Mount RACE-CLASS UTV Radiator Kits. These kits are able to handle those high performance race-class demands including desert class, SR1 Class, Short Course and all of your street bike engine swaped rigs.  offer set ups to handle anything from a 660 Rhino up to a RZR XP 1000 Turbo. These radiators features a dual pass oven brazed core. What makes these radiator kits so unique is its revolutionary integrated oil cooler, which is set up as a heat exchanger style resulting in massive cooling capabilities in those high demand race UTV’s. Put the performance back into your race vehicle, don’t let the heat slow you down.


Part # Dimensions Thickness w/Fans Coolant Filler Inlet/ Outlet Fans CFM’S Core Style Fins Per Inch Oil Cooler Application
CBR6076 22″ x 14″ x 2.25″ 7 1/2” Small 1” (1) 13” Spall 1630 55mm Dual Pass N/A No Universal Cage Mount YXZ 1000/XP900/XP1000

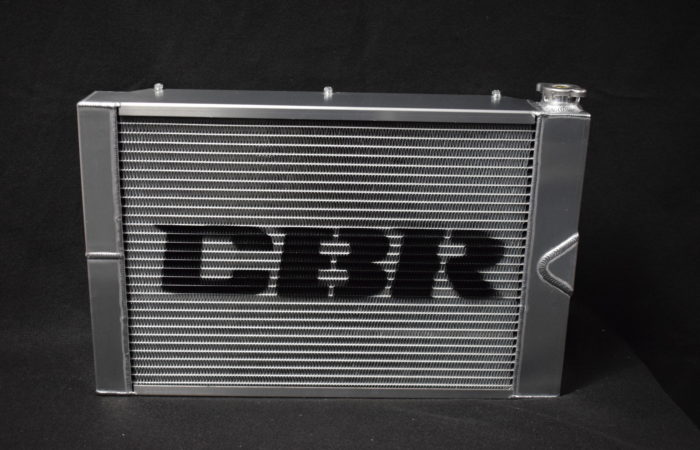

CBR6077 22.5″x14″x2.25″ 7 1/2” Small 1” (1) 13” Spall 1630 55mm Dual Pass N/A Yes Universal Cage Mount YXZ 1000/XP900/XP1000
CBR6079 31″x14″x 2.25″ N/A YES 1″ Rad/0.75″ heat exchange 12″ Spal Brushless N/A Dual Pass 55mm N/A No Polaris RZR XP 1000 Turbo

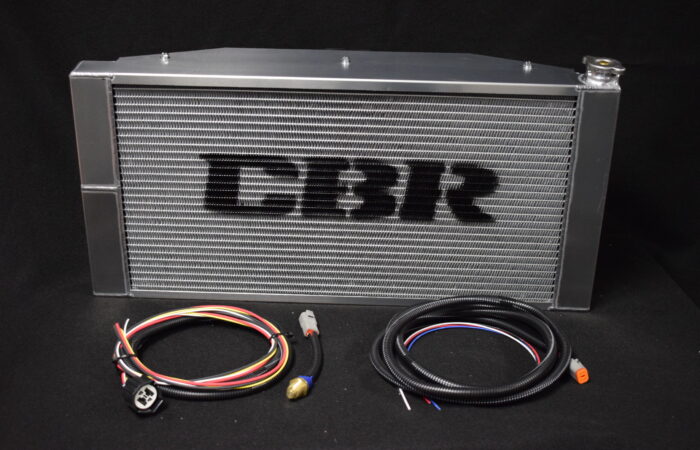

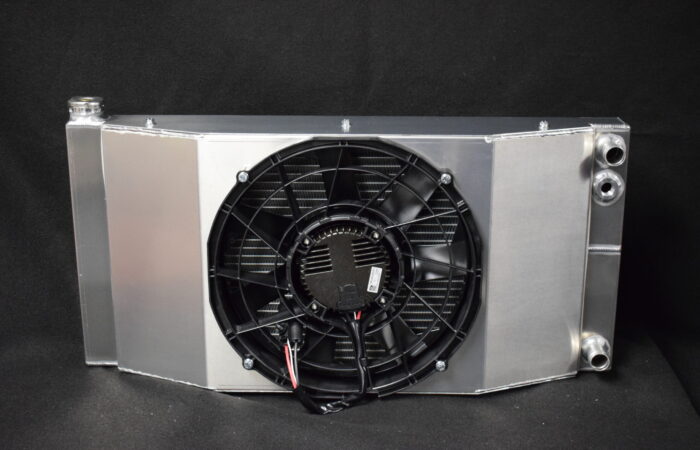

CBR6081 28″x13.5″x2″ N/A Small 1” 12” Spall Brushless N/A 32mm Dual Pass 14 No Can-Am Maverick X3
