CBR Performance Products, Inc. Polaris RZR radiators are leading the industry, with innovations in cooling technology that offer the best performance and reliability available. What gives these radiators a revolutionary edge is the high quality core design, which adds more surface area to dissipate heat faster. Each product CBR offers is custom built, giving each radiator up to a massive 30 percent gain in coolant capacity. All radiators are 100% tig and all aluminum construction, giving the radiators all the dependability you need.  Through rugged testing in extreme environments, cooling system have seen as much as a 30 degree drop in operating temperature. Don’t let the heat slow you down! Maximize your cooling by installing a CBR radiator on your Polaris UTV.

Call or email us for more details on any listed products or custom projects.

Polaris RZR XP 1000 Turbo Radiator/Heat Exchanger

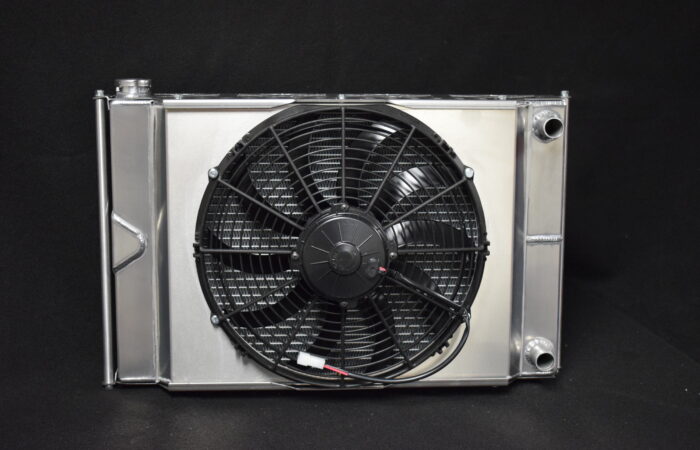

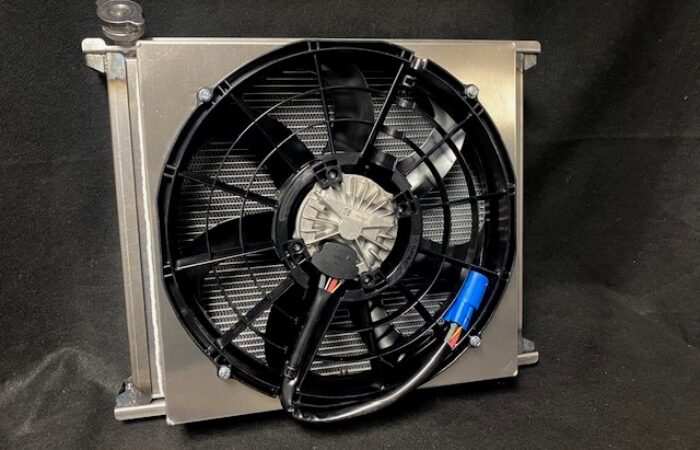

The RZR 1000 XP Turbo Radiator/Turbo Heat Exchanger combo is an independent system for the RZR XP 1000 Turbo UTV. It is a cage mounted 31” x 14” Dual Pass Radiator with a 12” Spal Brushless drop in fan.  This provides for more CFM and less amp draw.  It comes with high speed flaps, light weight core design and is built for race or turbo charged desert applications. This custom built radiator allows a massive 30% gain in coolant capacity and features our dual pass design which allows the flow of coolant to pass through the core twice enhancing cooling capability.  The Kit Includes mounting trays, wiring harness, and temperature switch necessary for brushless fan.

Part # Dimensions Thickness w/Fans Coolant Filler Inlet/ Outlet Fans CFM’S Core Style Oil Cooler Application
CBR6079

31″x14″ N/A YES 1″ Rad/0.75″ heat exchange 12″ Spal Brushless N/A Dual Pass 55mm No Polaris RZR XP 1000 Turbo

Polaris RZR XP 1000 Radiator

The RZR 1000 Replacement radiator takes your RZR a step up in performance and reliability, while utilizing the stock mounting location and fans. Featuring a 55mm core and 14 fins per inch, you get a massive 20% gain in coolant capacity. Also, by utilizing a triple pass design that allows coolant to pass through the radiator 3 times, we have seen temperature drops of as much as 25 degrees during testing in the most demanding conditions. Easily outclassing the stock radiator which has a 32mm single core and a single pass design.

Part # Dimensions Thickness w/Fans Coolant Filler Inlet/ Outlet Fans CFM’S Core Style Oil Cooler Application
CBR6078 18.78″x14.25″ N/A YES 1″ N/A N/A 55mm Dual Pass No Polaris RZR XP 1000

11-14 POLARIS RAZOR XP 900

11-12 POLARIS RAZOR XP 900 STAGE 1 COOLING KIT11-12 POLARIS RAZOR XP 900 STAGE 1 COOLING KIT Side

What gives this radiator the edge is the core design, hosting a 55mm core, compared to stock 32mm core, with 14 fins per square inch. This advantage allows for a larger surface area for superb cooling performance and allows a massive 20% gain in coolant capacity. This radiator features our dual pass design with dual round tanks which allows the flow of coolant to pass through the core twice enhancing cooling capability while giving it a race class look. Throughout testing, temperatures have dropped by as much as 30 degrees in the most extreme environments. The radiator is a direct replacement, utilizing the stock fan and can be easily installed without any customization. This kit is 100% aluminum and tig welded for light weight and durability.

Part # Dimensions Thickness w/Fans Coolant Filler Inlet/ Outlet Fans CFM’S Core Style Oil Cooler Application
CBR6075 18 1/2 X 11 3/4 X 2 1/4 Stock Fan N/A 1” N/A N/A 55mm Dual Pass No 11-12 Polaris Razor XP 900

POLARIS RAZOR 800/800s/RZR4 07-12 STAGE 1 & 2 COOLING KIT

Polaris partsThis Radiator features  an advanced 6.6mm fin pitch and 42mm thickness, compared to the stock 10mm fin pitch and 28mm thickness. This allows for a larger surface area, resulting in better heat dissipation. The custom built tanks allow a massive 20% gain in coolant capacity, and features our Dual Pass design which allows the flow of coolant to pass through the core twice, enhancing its cooling capability. The radiator is a direct replacement, utilizing the stock fan and can be easily installed without any customization. Throughout testing, temperatures have dropped as much as 25 degrees in the most extreme environments. This kit is 100% aluminum and tig welded for light weight and durability.

Part # Dimensions Thickness w/Fans Coolant Filler Inlet/ Outlet Fans CFM’S Core Style Oil Cooler Application
CBR6054 18 1/2 X 12 1/2 X 2 3/4 Stock Fan N/A 1” N/A N/A 42mm Dual Pass No 07-12 Polaris Razor 800/800s/RZR4 Stage I Kit
CBR6057 18 1/2 X 12 1/2 X 2 3/4 Stock Fan N/A 1” N/A N/A 42mm Dual Pass Yes 07-12 Polaris Razor 800/800s/RZR4 Stage II Kit
CBR6055 13 X 3 X 2 N/A N/A -10 an N/A N/A 50mm Single Pass Yes 07-12 Polaris Razor 800/800s/RZR4 Oil Cooler Kit

Polaris 1POLARIS RAZOR 800/800S/RZR4 07-12 OIL COOLING KIT

CBR’s turbulized design universal plate and fin oil cooler is made of an aerospace quality aluminum construction that allows the cooler to be lightweight, compact and rigid while offering excellent heat transfer and an extremely resistant to corrosion. The unique internal turbulized fins with the plates maximize heat transfer and redirect the oil flow, which work with the airside louvered fin design to provide highly efficient cooling with low pressure drop. The cooler mounts on a supplied bracket behind the radiator while a new oil filter bracket relocates the new Wix filter on the front fire wall for easier oil changes. Oil temperatures have been seen dropping as much as 40 degrees in the most extreme climates. If you have a big bore kit, turbo, or just want your RZR to run cooler, this kit is for you!! The kit comes with all necessary hardware to install.


POLARIS RANGER STAGE 1 COOLING KIT

POLARIS RANGER

CBR Performance Products, Inc. offers a Polaris Ranger Stage I Kit. This kit features the latest and greatest in High Performance cooling technology. What gives this revolutionary radiator its edge is the core design, featuring an advanced 8mm fin pitch and 58mm thickness, compared to the stock 10mm fin pitch and 28mm thickness. This advantage allows for a larger surface area for superb cooling performance. The custom built tanks allow a massive 20% gain in coolant capacity, and features our dual pass design which allows the flow of coolant to pass through the core twice, enhancing its cooling capability. This kit is a direct replacement, utilizing the stock shroud and fan. Throughout testing, temperatures have dropped as much as 25 degrees in the most extreme environments.

Part # Core Size Fans Inlet/ Outlet Core Style Application
CBR6056 18 1/2 X 12 1/2 X 2 3/4 Stock 1” 58MM Dual Pass 09-10 Polaris Ranger
