CBR OFF-ROAD RADIATORS

CBR Performance Products, Inc. specializes in manufacturing high performance custom all aluminum OFF ROAD Radiators. Our radiators feature a 100% all aluminum core, which is stronger than your traditional copper core. Aluminum allows for the use of wider tubes giving you more direct contact between the fins and tubes, increasing the radiators capacity and can dissipate heat quicker. stacks_image_53All CBR radiators feature a wider tube configuration and revolutionary louver fin design, allowing the best cooling performance in the most extreme conditions imaginable. All radiators are 100% Tig welded and made from aircraft grade aluminum. Ingenuity, durability, strength and performance is built into all CBR radiators for your everyday and off-road demands. We also specialize in custom units, SO IF YOU DON’T SEE IT, feel free to contact us at CBR about custom builds.



Part # Dimensions Thickness w/Fans Coolant Filler Inlet/ Outlet Fans CFM’S Core Style
CBR1008 22”X12.5”X3” “7 1/2″” LARGE 1” “(1)12″” SPAL” 1360 1” (2 ROW) DUAL PASS
CBR1009 22”X19”X3” “7 1/2″” NONE 1 1/2” “(1)16″” SPAL” 2360 1” (2 ROW) DUAL PASS
CBR1010 24”X19”X3” “7 1/2″” NONE 1 1/2” “(1)16″” SPAL” 2360 1” (2 ROW) DUAL PASS
CBR1012 26”X19”X3” “7 1/2″” NONE 1 1/2” “(1)16″” SPAL” 2360 1” (2 ROW) DUAL PASS
CBR1013 28”X19”X3” “7 1/2″” NONE 1 1/2” “(1)16″” SPAL” 2360 1” (2 ROW) DUAL PASS
CBR1011 28”X19”X3” “7 1/2″” NONE 1 1/2” “(2)13″” SPAL” 3420 1” (2 ROW) DUAL PASS
CBR1003 31”X14”X3” “7 1/2″” NONE 1 1/2” “(2)12″” SPAL” 2720 1” (2 ROW) DUAL PASS
CBR1002 31”X16”X3” “7 1/2″” NONE 1 1/2” “(2)14″” SPAL” 3440 1” (2 ROW) DUAL PASS
CBR1001 31”X19”X3” “7 1/2″” NONE 1 1/2” “(2)14″” SPAL” 3440 1” (2 ROW) DUAL PASS
CBR1014 35”X19”X3” “7 1/2″” NONE 1 1/2” “(2)16″” SPAL” 4720 1” (2 ROW) DUAL PASS

____________________________________________________________________________________________________________________________

stacks_image_16

CBR RADIATOR MOUNT KIT

PART# CBR0033 3 1/2″ Radiator Mounting Kit (STEEL) RETAIL: $145.00

____________________________________________________________________________________________________________________________

stacks_image_56
stacks_image_57

PRO-CLASS RADIATORS WITH OPTIONAL HEAT EXCHANGER

CBR’s “PRO-CLASS” Radiators feature an optional integrated heat exchanger to maximize its cooling performance. The heat exchanger features a hugh 9 plate 45mm core and allows for a larger oil capacity. The “PRO-CLASS” Radiator offers you the ultimate cooling package for your race or play setup. The “PRO-CLASS” Radiators can be custom made to your spec.

Part # Dimensions Thickness w/Fans Coolant Filler Inlet/ Outlet Fans CFM’S Core Style
CBR1016 32X23X3 “7 1/2″” NONE 1 1/2” “(2)16″” SPAL” 4720 2 ROW 1”DUAL PASS
CBR1015 33X19X3 “7 1/2″” NONE 1 1/2” “(2)16″” SPAL” 4720 2 ROW 1”DUAL PASS
CBR1019 33X24X8 8” NONE OPTIONAL (2)16” (4) 5.2” 5880 2 ROW 1”DUAL PASS

* HEAT EXCHANGER INLET/OUTLET: 7/8 -14 UNF (-10 O-RING)

stacks_image_58
stacks_image_59
____________________________________________________________________________________________________________________________
stacks_image_60

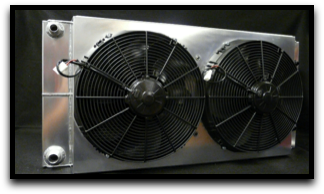

RACE CLASS  RADIATOR WITH OPTIONAL HEAT EXCHANGER

stacks_image_62

CBR’s “RACE CLASS ” Radiator is our most technically advanced cooling system. This radiator features an optional integrated 12 plate heat exchanger, 3″ deep fan shroud and a massive 3 row 1″ core. Compared to the Pro-Class heat exchanger 9 plate, the 12 plate heat exchanger design is larger and has a massive surface area for better cooling performance. The 3″ fan shroud allows for a high internal flow rate and a high amount of ambient air flow.stacks_image_61

3 row core is a hugh step up from the other 2 row designs adding a whole 25.4mm to the core resulting in a hugh performance gain in cooling. The RACE CLASS Radiator is guaranteed to solve your thermal management problems. Keep in mind that any radiator can be built to spec here at CBR.
Part # Dimensions Thickness w/Fans Coolant Filler Inlet/ Outlet Fans CFM’S Core Style
CBR1005 38”X17”X4” “10 1/2″” NONE 1 1/2” “(2)16″ SPAL” 4720 3 ROW 1”DUAL PASS

* HEAT EXCHANGER INLET/OUTLET: 7/8 -14 UNF (-10 O-RING)

stacks_image_63
____________________________________________________________________________________________________________________________
stacks_image_64

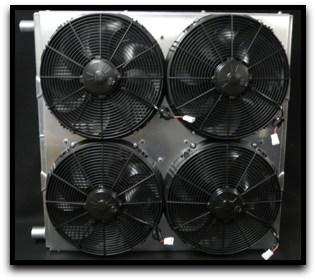

TROPHY TRUCK SPEC RADIATOR
stacks_image_65The TT spec radiator is a masterpiece all by its self, featuring a massive 31”x 31” two row core with our legendary dual pass technology. Surpassing all other radiators, this monster holds a total of (4) 16” SPAL paddle blade fans pulling an incredible 9800cfm’s. Top race teams from around the world have helped in the research of this massive radiator and is now available to you! This radiator can be customized with internal oil coolers or attached oil coolers.

Part # Core Size Overall Size Fans CFM Core Size/Style
CBR2001 31”X31” X3” 34”X32”X7” (4) 16” 9800 2 ROW, 1” DUALPASS
stacks_image_66
____________________________________________________________________________________________________________________________
stacks_image_67

PRO 2/4 SPEC RADIATOR

stacks_image_68

CBR’s PRO 2/4 spec radiator is a masterpiece all by its self, featuring a massive 31”x 32” two row core with our legendary dual pass technology. Surpassing all other radiators, this monster holds a total of (4) 16” SPAL curved blade fans pulling an incredible 8040cfm’s. Top race teams from around the world have helped in the research of this massive radiator and is now available to you! This radiator can be customized with internal oil coolers or attached oil coolers.

Part # Core Size Overall Size Fans CFM Core Size/Style
CBR2002 31”X32”X3” 35”X32”X7” (4) 16” 8040 2 ROW, 1” DUALPASS
stacks_image_69
